VX II

The VX II from VOX takes modeling amps to the next level. The all-new VET (Virtual Element Technology) modeling circuits at work in the VX I and VX II offer guitarists the best of both digital and analog amplifier design, as it accurately revives a myriad of classic amplifiers. In order to obtain a more authentic sound and produce sound more efficiently, VX amps employ a uniquely designed-bass reflex structure combined with a sealed, one-piece speaker enclosure. The cabinet's shape, curvature of the front and back surfaces, and the internal reinforcement ribs have all been carefully designed to optimize the resonance. A conventional wooden baffle was chosen to retain the projection and tone of a classic guitar amp, while the cabinet is constructed from a lightweight and durable ABS material that produces superior acoustical properties with quality sound and easy portability.

The VX II features 11 classic amp models and eight distinct effects, and it allows for 22 unique user presets. The amp models cover a lot of ground, ranging from classic American and British amplifiers of the 1950s and 1960s, to the coveted sounds of the classic VOX AC30, to some modern, high-gain tone monsters. Complementing these great amp sounds are eight classic effects which include chorus, flanger, phaser, tremolo, tape-style delay, analog-style delay and two types of reverb: spring and hall.

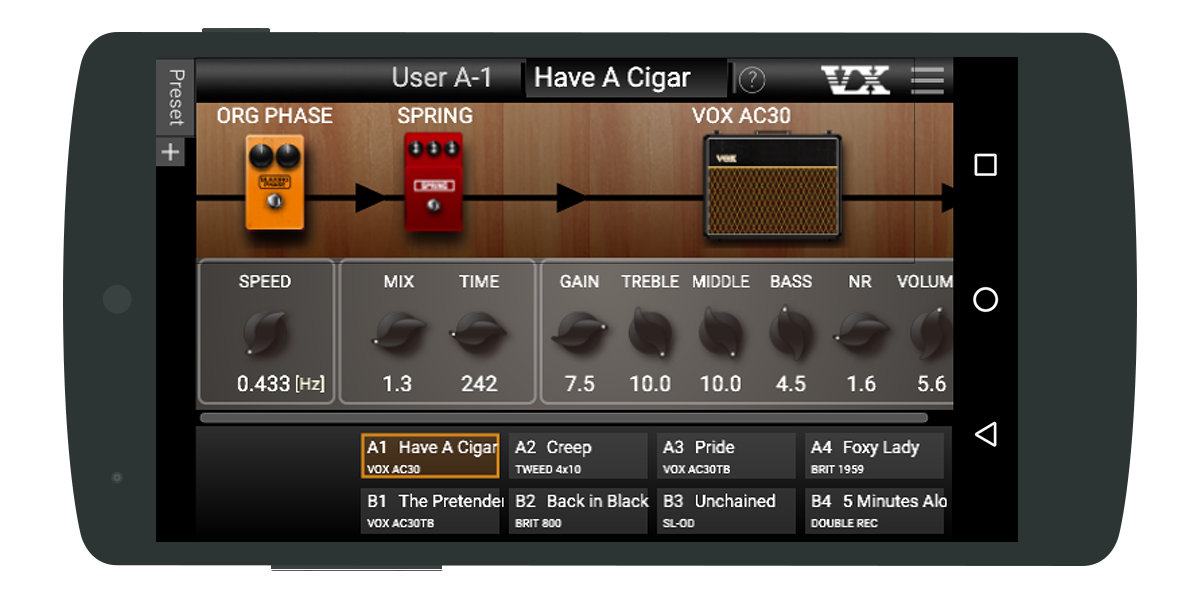

The VX II is equipped with a USB port for simple integration with a PC, Mac, or even iOS & Android platforms and also comes bundled with VOX’s JamVOX III and the new VOX Tone Room software for deep editing of your favorite amp models and effects! Tone Room is available to download on your PC, Mac via the Support tab of this page and is also available for your iOS and Android devices via the App Store or Google Play!

Get it on Google Play

If you’re looking for authentic guitar tones and professional sound quality in a lightweight and affordable package, with the added convenience of a USB audio interface, look no further than the VX II from VOX.




    Amp models: 11

    Effects: 8

    Preset Programs: 11

    User Programs: 2 (Using the VFS5 foot switch increases the number of user programs to 8)

    Input / Output

    VX I: INPUT jack, Headphones jack, AUX IN jack, FOOT SW jack

    VX II: INPUT jack, Headphones jack, AUX IN jack, FOOT SW jack, USB (Type B) port

    Power Amplifier Output

    VX I: Maximum approx. 15W RMS @4 ohms

    VX II: Maximum approx. 30 W RMS @4 ohms

    Speaker

    VX I: 6.5” 4 ohms

    VX II: 8” 4 ohms

    Signal Processing

    A/D conversion: 24-bit

    D/A conversion: 24-bit

    Sampling Frequency: 44.1 kHz

    Power Supply

    VX I: AC adapter (DC 12 V)

    VX II: AC adapter (DC 15 V)

     Current Consumption

    VX I: 2.5 A

    VX II: 3.3 A

    Dimensions (W x D x H): 354 x 192 x 313 / 13.94” x 7.56” x 12.32”

     Weight: 3.8 kg / 8.38 lbs.

     Included Items:

    VX I: AC adapter

    VX II: AC adapter, JamVOX III download card

     Accessories (sold separately): VOX VFS2 footswitch, VOX VFS5 footswitch

    * Specifications and appearance are subject to change without notice for improvement.

    view
    Download

    Vox Tone Room for Android v1.2.2 11/14/2017

    Updates in Version 1.2.2

    • iOS 11 is now supported.
    • Improved operation after returning from sleep or background.
    • The display stays on when connected to the VOX product.
    • Some minor improvements have been implemented to improve stability



    -- Android --

    System Requirements

    •    Wired Connection (via USB-MIDI)

        Android 6.0 or later, Android Phone/Tablet(USB OTG cable is needed.)

    •    Wireless Connection (via Bluetooth MIDI)

        Android 6.0.1 or later, Android Phone/Tablet





    How To Update

    Get it on Google Play

       Please install and update the app referring to Google Play.

    VOX Tone Room for iOS v1.2.2 11/14/2017

    Updates in Version 1.2.2

    • iOS 11 is now supported.
    • Improved operation after returning from sleep or background.
    • The display stays on when connected to the VOX product.
    • Some minor improvements have been implemented to improve stability



    -- iOS --

    System Requirements

    •    iOS 8.0 or later, iPhone/iPad

       (need Apple genuine USB camera adapter via Wired connection)



    How To Update

       Please update the app referring to the iTunes Store.

    VOX 2ch Audio Driver Troubleshooting guide 10/2/2017

     VOX2chAudioDriver_troubleshoot_en.pdf

    Solution if the VOX 2ch Audio Driver becomes invalid

    Tone Room v1.2.1 for iOS 6/7/2017

    Tone Room is designed to work as an editor/librarian for VOX products, including the VX II, VT20X/40X/100X and Adio/Adio Air.

    Connect your VX, VTX or Adio/Adio Air to a Windows/Mac/iPad/iPhone/Android with a USB cable or connect your Adio Air to a Bluetooth MIDI supported device via wireless connection. Tone Room allows you to edit sounds, manage programs, and backup your settings.


    Changes in Version 1.2.1

    - Adio/Adio Air are now supported.
    - Wireless communication via Bluetooth LE MIDI is supported.(Adio Air only)
    - The user interface of VX II and VT20X/40X/100X has been partially improved.
    - The file program tab under editing is automatically backed up and restored.
    - Some minor improvements have been implemented to improve stability.

    System Requirements

    • iOS 8.0 or later, iPhone/iPad (need Apple genuine USB camera adapter via Wired connection)

    How to update

    • Please update the app referring to the iTunes Store.



    Tone Room v1.2.1 for Android 6/7/2017

    Tone Room is designed to work as an editor/librarian for VOX products, including the VX II, VT20X/40X/100X and Adio/Adio Air.

    Connect your VX, VTX or Adio/Adio Air to a Windows/Mac/iPad/iPhone/Android with a USB cable or connect your Adio Air to a Bluetooth MIDI supported device via wireless connection. Tone Room allows you to edit sounds, manage programs, and backup your settings.


    Changes in Version 1.2.1

    - Adio/Adio Air are now supported.
    - Wireless communication via Bluetooth LE MIDI is supported.(Adio Air only)
    - The user interface of VX II and VT20X/40X/100X has been partially improved.
    - The file program tab under editing is automatically backed up and restored.
    - Now, when you first launch ToneRoom, the app will automatically detect, and inform you,  if the Android device you're using does not support MIDI / USB / Bluetooth.
    - Some minor improvements have been implemented to improve stability.

    System Requirements

    Wired Connection (via USB-MIDI)

    • Android 6.0 or later, Android Phone/Tablet. (USB OTG cable is needed.)

    Wireless Connection (via Bluetooth MIDI)

    • Android 6.0.1 or later, Android Phone/Tablet

    How to update

    • Please install and update the app referring to the Google Play.

    Get it on Google Play



    Tone Room v1.2.0 Installer for Mac 6/7/2017

     ToneRoom_Installer_120.dmg

    Tone Room is designed to work as an editor/librarian for VOX products, including the VX II, VT20X/40X/100X and Adio/Adio Air.

    Connect your VX, VTX or Adio/Adio Air to a Windows/Mac/iPad/iPhone/Android with a USB cable or connect your Adio Air to a Bluetooth MIDI supported device via wireless connection. Tone Room allows you to edit sounds, manage programs, and backup your settings.

    Before using Tone Room with Mac via USB, please install the VOX USB-MIDI Driver.

    Changes in Version 1.2.0

    - Adio/Adio Air are now supported.
    - macOS Sierra (10.12) is now supported.
    - Wireless communication via Bluetooth LE MIDI is supported.(Adio Air only)
    - The user interface of VX II and VT20X/40X/100X has been partially improved.
    - The file program tab under editing is automatically backed up and restored.
    - Some minor improvements have been implemented to improve stability.

    System Requirements

    Wired Connection (via USB-MIDI)

    • OS X 10.8 or later
    • OS X 10.9 or later
    • OS X 10.10 or later
    • OS X 10.11 or later
    • macOS Sierra (10.12) or later

     Wireless Connection (via Bluetooth MIDI)

    • OS X 10.10 or later
    • OS X 10.11 or later
    • macOS Sierra (10.12) or later

    How to update

    • Mount the downloaded disk image file, and run the installer.

    Tone Room v1.2.0 Installer for PC 6/7/2017

     ToneRoom_Installer_120en.zip

    Tone Room is designed to work as an editor/librarian for VOX products, including the VX II, VT20X/40X/100X and Adio/Adio Air.

    Connect your VX, VTX or Adio/Adio Air to a Windows/Mac/iPad/iPhone/Android with a USB cable or connect your Adio Air to a Bluetooth MIDI supported device via wireless connection. Tone Room allows you to edit sounds, manage programs, and backup your settings.


    Before using Tone Room with PC via USB, please install the VOX USB-MIDI Driver.

    Before using Tone Room with PC via wireless connection, please install the VOX BLE-MIDI Driver .

    Changes in Version 1.2.0

    - Adio/Adio Air are now supported.
    - Windows 10 Creators update(version 1703) is now supported.
    - Wireless communication via Bluetooth LE MIDI is supported.(Adio Air only, using VOX BLE-MIDI Driver)
    - The user interface of VX II and VT20X/40X/100X has been partially improved.
    - The file program tab under editing is automatically backed up and restored.
    - Some minor improvements have been implemented to improve stability.

    System Requirements

    Wired Connection (via USB-MIDI)

    • Windows 7 SP1  All editions (32/64bit)
    • Windows 8.1  All editions (32/64bit)
    • Windows 10  All editions (32/64bit)

     Wireless Connection (via Bluetooth MIDI)

    • Windows 8.1  All editions (32/64bit)
    • Windows 10  All editions (32/64bit)

    How to update

    • Unzip the downloaded file, please run the installer.

    VX II/System Updater v1.01 (MAC) 10/14/2016

     VXII_v101_mac.dmg

    VX II/System Updater v1.01 Release note

    v1.01 Summary

    - Fixed the connection problem that the system doesn't recognize your device as a USB device which could occur after sleep mode.


    System Requirements

    Mac OS X10.8.5 or later



    How to update

    Mount the downloaded dmg file by double-clicking on it. Instructions for updating are in the document file witch is in the disk image. Please refer to the file and execute the updating.

    VX II/System Updater v1.01 (PC) 10/14/2016

     VXII_v101_win.zip

    VX II/System Updater v1.01 Release note

    v1.01 Summary

    - Fixed the connection problem that the system doesn't recognize your device as a USB device which could occur after sleep mode.


    System Requirements

    Windows 7 SP1  or later (32/64bit)


    How to update

    Instructions for updating are in the document file which is extracted  from the downloaded file. Please refer to the file and execute the updating.

    VOX Tone Room v1.1.3 for Android 9/2/2016

    Tone Room v1.1.3  for Android

    Tone Room is designed to work as an editor/librarian for VOX products, including the VX II, VT20X/40X/100X.
    Connect your VX or VTX amplifier to an Android smartphone/tablet with a USB cable. Tone Room allows you to edit sounds, manage programs, and backup your settings.

    Changes in Version 1.1.3 for Android
    Fixed the problem that the display resolution of some Android devices was recognized wrongly.
    This update can affect the resolution and layout of the display on the other Android devices.

    Android 6.0 or later, Android Phone/Tablet
    (USB OTG cable is needed.)



    Install and update the Tone Room app via Google Play

    Get it on Google Play

    VOX Tone Room for iOS v1.1.2 7/8/2016

    Tone Room v1.1.2 for iOS

    Tone Room is designed to work as an editor/librarian for VOX products, including the VX II, VT20X/40X/100X.

    Connect your VX or VTX amplifier to a iPhone/iPad with a USB cable. Tone Room allows you to edit sounds, manage programs, and backup your settings.



    Changes in Version 1.1.2

    You can now disconnect and reconnect the USB cable while the app is running.
    The app now keeps your program data loaded into the tabs.
    Some minor improvements have been implemented to improve stability.



    -- iOS --

    iOS 8.0 or later, iPhone/iPad iOS 9.0 or later, iPhone/iPad (need Apple genuine USB camera adapter)





    Update the Tone Room app via the iTunes Store





    VOX Tone Room for Android 5/20/2016

    Tone Room v1.1.2

    Tone Room is designed to work as an editor/librarian for VOX products, including the VX II, VT20X/40X/100X. Connect your VX or VTX amplifier to Android smartphone with a USB cable. Tone Room allows you to edit sounds, manage programs, and backup your settings.


    Android 6.0 Marshmallow is now supported.

    Some minor improvements have been implemented to improve stability.


    -- OS --

    A
    ndroid 6.0 or later, Android Phone/Tablet

    (requires USB OTG cable)

    Install and update the Tone Room app via Google Play

    Get it on Google Play

    VOX Tone Room for iOS 2/24/2016

    Tone Room v1.1.1

    Tone Room is designed to work as an editor/librarian for VOX products, including the VX II, VT20X/40X/100X. Connect your VX or VTX amplifier to a Windows/Mac/iPad/iPhone with a USB cable. Tone Room allows you to edit sounds, manage programs, and backup your settings.

    Before using Tone Room with PC / Mac, please install the VOX USB MIDI Driver.


    Changes in Version 1.1.1

    Some minor improvements have been implemented to improve stability.

    -- iOS --

    iOS 8.0 or later, iPhone/iPad

    iOS 9.0 or later, iPhone/iPad

    (requires Apple USB camera adapter)



    How to update

    • Update the Tone Room app via the iTunes Store





    VOX ToneRoom Installer for MAC 11/4/2015

     ToneRoom_Installer_110.dmg

    Tone Room v1.1.0

    Tone Room is designed to work as an editor/librarian for VOX products, including the VX II, VT20X/40X/100X.

    Connect your VX or VTX amplifier to a Windows/Mac/iPad/iPhone with a USB cable. Tone Room allows you to edit sounds, manage programs, and backup your settings.



    Before using Tone Room with PC / Mac, please install to install the VOX USB MIDI Driver.

    Changes in Version 1.1.0

    •          VT20X/40X/100X are now supported.
    •          Windows 10 is now supported.
    •          MacOS 10.11 is now supported.
    •          Some minor improvements have been implemented to improve stability.



    System Requirements

    • Mac OS X10.8 or later
    • Mac OS X10.9 or later
    • Mac OS X10.10 or later
    • Mac OS X10.11 or later



    How to update

    •    Mount the downloaded disk image file, please run the installer.

    VOX ToneRoom Installer for Windows 11/4/2015

     ToneRoom_Installer_110en.exe

    Tone Room v1.1.0

    Tone Room is designed to work as an editor/librarian for VOX products, including the VX II, VT20X/40X/100X.

    Connect your VX or VTX amplifier to a Windows/Mac/iPad/iPhone with a USB cable. Tone Room allows you to edit sounds, manage programs, and backup your settings.



    Before using Tone Room with PC / Mac, please install to install the VOX USB MIDI Driver.

    Changes in Version 1.1.0

    •          VT20X/40X/100X are now supported.
    •          Windows 10 is now supported.
    •          MacOS 10.11 is now supported.
    •          Some minor improvements have been implemented to improve stability.



    System Requirements

    • Windows 7 SP1  All editions (32/64bit)
    • Windows 8.1  All editions (32/64bit)
    • Windows 10  All editions (32/64bit)



     How to update

    •    Unzip the downloaded file, please run the installer.





    Tone Room for MAC 6/25/2015

     ToneRoom_Installer_100.dmg

    It will work as an editor / librarian of VOX VX II.

    VX II and Windows / Mac / iPad / iPhone to be connected with a USB cable of sound editing, User program management, you can backup.

    Because the Windows version / Mac version / iOS version is a compatible data format, the sound that was edited in the home PC to bring out by transplanting into the iPhone use the iTunes app data sharing capabilities That is also possible.

    Tone Room is to update the future, we plan to add a new model of support and new features.

    If you want to use the Tone ROom with PC / Mac, you need to install the VOX USB MIDI Driver in advance.

    System Requirements

    • Mac OS X10.8 or later
    • Mac OS X10.9 or later
    • Mac OS X10.10 or later


    How to update: Please install VOX USB-Driver.  Then please mount the downloaded disk image file, please run the installer.

    Tone Room for PC 6/25/2015

     ToneRoom_Installer_100en.exe

    It will work as an editor/librarian of VOX VX II.

    VX II and Windows / Mac / iPad / iPhone to be connected with a USB cable of sound editing, User program management, you can backup.

    Because the Windows version / Mac version / iOS version is compatible data format, the sound that was edited in the home PC to bring out by transplanting into the iPhone use the iTunes app data sharing capabilities That is also possible.

    Tone Room is to update the future, we plan to add a new model of support and new features.  If you want to use the Tone Room with PC / Mac, you need to install the BOX USB MIDID Driver in advance.

    System Requirements

    Windows 7 SP1 All editions (32/64bit)
    Windows 8.1 All Editions (32/64bit)

    How to update:  Please install VOX USB Driver.  Unzip the downloaded file, please run the installer.

    Driver

    Vox Driver (Windows) 11/3/2016

     VoxDrvTools(115_r11).exe

    VOX Driver for Windows (USB-MIDI)

    MIDI Driver 1.2.3 (Mac) 11/3/2016

     VOX_USB-MIDI_Driver_1.2.3_(r2).dmg

    VOX USB MIDI Driver for MAC

    VOX USB-MIDI Driver Temporary Version 2/22/2016

     VOX_USB-MIDI_Driver_V1.2.4_r1.dmg

    This Driver is a temporary version to avoid the compatibility problem which occurs when using the VOX VX II modeling guitar amplifier with MacOS X 10.11 (El Capitan).

    If this condition does not apply to you, please do not install this version.

    • System Requirements: Mac OX X 10.11
    • How to update:  Mount the downloaded disk image file, then run installer.

    VOX USB-MIDI Driver for Windows V1.15_r9 7/1/2015

     VoxDrvTools_e(1.15_r9).zip

    Requirements

    • Windows Vista,
    • Windows 7,
    • Windows 8.1

    How to install:  Unzip the file and run VoxDrvTools_e.exe

    Manual

    Owner's Manual 7/9/2015

     VXI_II_OM_EFGS2.pdf

    VX II Owner's Manual
